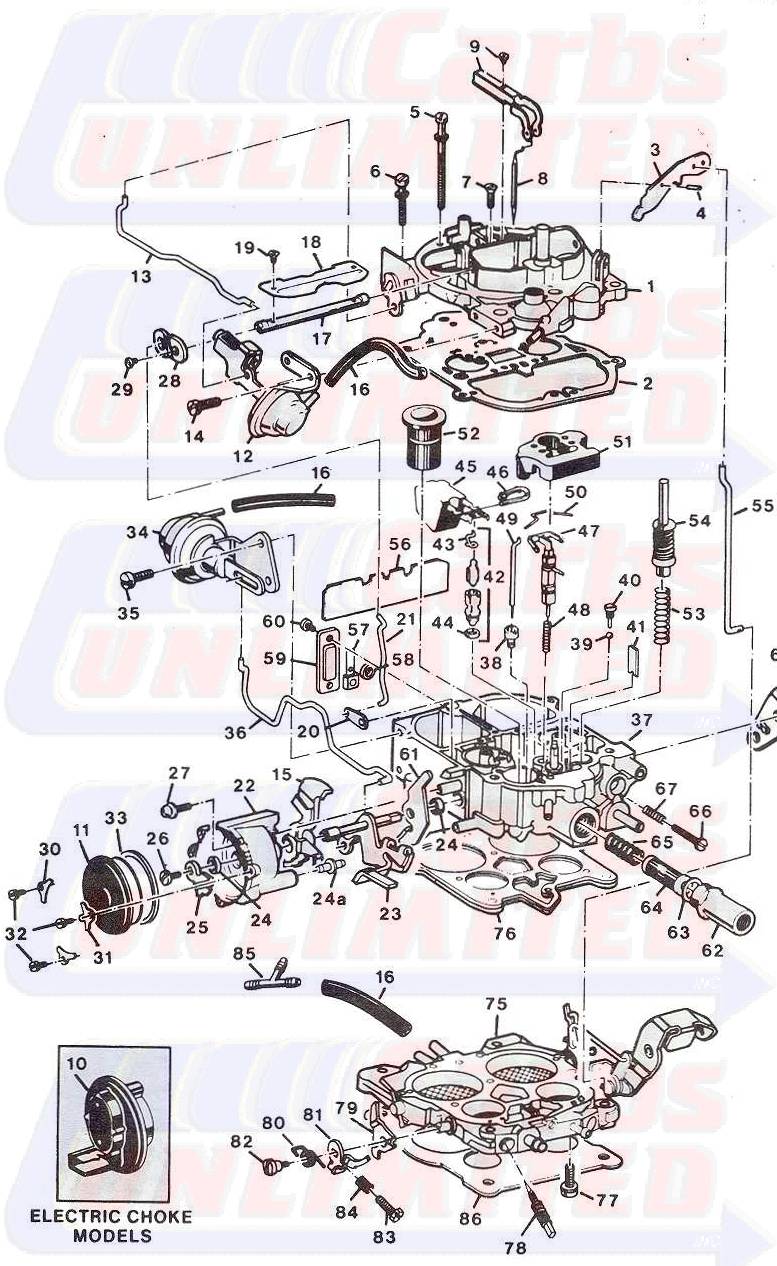

| Quadrajet Parts Page | Divorced Choke Model |
| Electronic Computerized Model | |
| Description | M4MC,M4ME Diagram |
| 1- Air Horn Assembly |
 Some Parts also available Used or refurbished Call 253-833-4106 for quote |
| 2- Gasket - Air Horn | |
| 3- Lever - Pump Actuating | |
| 5- Screw - Air Horn (2) | |
| 6- Screw - Air Horn (5) | |
| 7- Screw - Air Horn (2) | |
| 8- Metering Rod - Secondary (2) | |
| 9- Sec. Meter. Rod Holder | |
| 10- Electric Stat Cover & Coil Assy. | |
| 11- Stat Cover Coil & Gasket Assy. | |
| 12- Pulloff | |
| 13- Rod - Air Valve | |
| 14- Screw - Control Attaching (2) | |
| 15- Cam - Fast Idle | |
| 16- Hose - Vacuum | |
| 17- Choke Shaft | |
| 18- Choke Valve | |
| 19- Screw - Choke Valve (2) | |
| 20- Lever - Inter. Choke | |
| 21- Rod - Choke | |
| 22- Kit - Choke Housing | |
| 23- Inter. Choke Shaft & Lever | |
| 24- Seal - Inter. Choke Shaft | |
| 24A- Seal - Choke Housing to Bowl | |
| 25- Lever - Stat Coil | |
| 26- Screw - Coil Lever | |
| 27- Screw - Choke Housing to Bowl | |
| 28- Lever - Choke | |
| 29- Screw - Choke Lever | |
| 30- Retainer - Stat Cover (3) | |
| 31- Retainer - Stat Cover kit | |
| 32- Stat Cover Retainer Kit | |
| 33- Gasket - Stat Cover (Hot Air Only) | |
| 34- Aux. Pulloff | |
| 35- Screw - Aux. Vac. Break (2) | |
| 36- Link - Aux. Vacuum Break | |
| 38- Jet | |
| 39- Acc Pump check ball | |
| 40- Acc Pump ball cover | |
| 41- Acc pump shield | |
| 42 Needle and Seats | |
| 43- Needle clip | |
| 44- Seat Gasket | |
| 45- Float | |
| 46- Float pin | |
| 47- Power piston Assembly | |
| 48- Power piston Spring | |
| 49- Metering Rods | |
| 50- Metering rod spring | |
| 51- Float bowl insert | |
| 51- Float bowl round insert | |
| 53- Acc pump return spring | |
| 54- Acc Pump - More | |
| 55- Acc Pump rod | |
| 56- Secondary air baffle | |
| 57- Hot Idle compensator | |
| 58- Hot idle comp gasket | |
| 59- Hot idle comp cover | |
| 60- Hot idle comp screw | |
| 61- Fast idle cam | |
| 62- Fuel inlet fitting | |
| 63- Fuel inlet gasket | |
| 64- Fuel filter | |
| 65- Fuel filter spring | |
| 66- Idle screw | |
| 67- Idle screw spring | |
| 68- Throttle shaft | |
| 75- Base Plate | |
| 76- Mid body gasket | |
| 77- Base plate screw | |
| 78- Mixture screw | |
| 83- Fast idle screw | |
| 84- Fast idle spring | |
| 86-Base gasket | |
