| Quadrajet Parts Page | Divorced Choke Model 4MC |
| Heated or Electric Choke Model | |
|
Description |

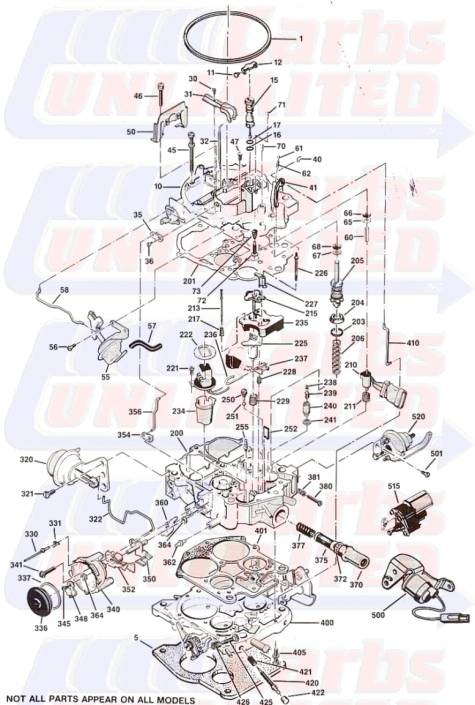

E4MC Diagram |
| 1- Gasket - Air Cleaner |
|
| 5- Gasket - Flange | |
| 10- Air Horn Assy. | |
| 11- Rivet-Cover Attaching | |
| 12- Cover-Air Bleed Valve | |
| 15- Air Bleed Assy. | |
| 16- O-ring - Air Bleed Valve - Lower | |
| 17- O-ring - Air Bleed Valve - Upper | |
| 30- Screw - Secondary Metering Rod | |
| 31- Holder - Secondary Metering Rod | |
| 32- Rod- Secondary Metering | |
| 35- Lever - Choke | |
| 36- Screw - Choke Lever Attaching | |
| 40- Retainer - Pump Link | |
| 41- Lever - Pump | |
| 45- Screw Asm. - Air Horn to Throttle Body | |
| 46- Screw Asm. - Air Horn to Float Bowl | |
| 47- Screw - Air Horn to Float Bowl(countersink) | |
| 50- Baffle - Air Horn | |
| 55- Primary Pulloff | |
| 56- Screw - Primary Side(front) Vacuum | |
| 57- Hose - Primary Side(front) Vacuum Break | |
| 58- Link - Primary Side Vacuum Break | |
| 60- Plunger - Sensor Activator | |
| 61- Plug - TPS Adjusting Screw | |
| 62- Screw - TPS Adjusting | |
| 65- Retainer - TPS Seal | |
| 66- Seal - TPS Plunger | |
| 67- Retainer - Pump Stem Seal | |
| 68- Seal - Pump Stem | |
| 70- Plug - Solenoid Adjusting Screw | |
| 71- Plug - Solenoid Stop Screw | |
| 72- Screw - Solenoid Stop(rich mixture) | |
| 73- Spring - Rich Stop Authority Adjusting | |
| 200- Float Bowl Asm. | |
| 201- Gasket - Air Horn to Float Bowl | |
| 203- Spring - Pump Plunger | |
| 204- Cup - Pump Plunger | |
| 205- Pump Asm. | |
| 206- Spring - Pump Return | |
| 210- Sensor - Throttle Position(TPS) | |
| 211- Spring - Sensor Adjusting | |
| 213- Rod - Primary Metering | |
| 215- Plunger - Solenoid | |
| 217- Spring - Primary | |
| 221- Mixture control solinoid | |
| 222- Gasket - Solenoid Connector to Air Horn | |
| 225- Mixture control solinoid | |
| 226- Screw - Solenoid Adjusting | |
| 227- Stop - Rich Limit | |
| 228- Spring- Solenoid Adjusting Screw | |
| 229- Spring- Solenoid Return | |
| 234- Insert- Aneroid Cavity | |
| 235- Insert- Float Bowl | |
| 236- Hinge Pin- Float | |
| 237- Float | |
| 238- Pull Clip- Float Needle | |
| 239- Needle- Float | |
| 240- Seat- Float Needle | |
| 241- Gasket- Float Needle Seat | |
| 250- Plug- Pump Disharge | |
| 251- Ball- Pump Discharge | |
| 252- Baffle- Pump Well | |
| 255- Primary Metering Jet Asm. | |
| 320- Vacuum Break Asm.- Secondary | |
| 321- Screw- Secondary Side, (rear) | |
| 322- Link- Secondary Side, (rear) | |
| 330- Rivet- Choke Cover Attaching | |
| 331- Retainer- Choke Cover | |
| 336- Choke Cover & Stat Asm. | |
| 337- Gasket- Choke Cover | |
| 340- Choke Housing Asm. | |
| 341- Screw & Washer Asm.- Choke Housing to Float Bowl | |
| 345- Screw- Choke Stat Lever Attaching | |
| 348- Lever- Choke Stat | |
| 350- Intermediate Choke Shaft, Lever & Link Asm. | |
| 352- Fast Idle Cam Asm. | |
| 354- Lever- Intermediate Choke | |
| 356- Link- Choke | |
| 360- Lever- Secondary Throttle Lockout | |
| 362- Seal- Choke Housing to Float Bowl | |
| 364- Seal- Intermediate Choke Shaft | |
| 370- Nut- Fuel Inlet | |
| 410- Pump Rods | |
| 375- Fuel Filters | |
| Some Parts also available Used or refurbished Call 253-833-4106 for quote | |
| 420- Mixture Screws | |
| 500-Solinoids | |
