Carburetor Reference Sheet and Related Parts
|
|||
| Brand: Rochester | Type:
R4-E4MC Quadrajet Qjet |
Number: 17080554 |
CU: 4-464 |
|

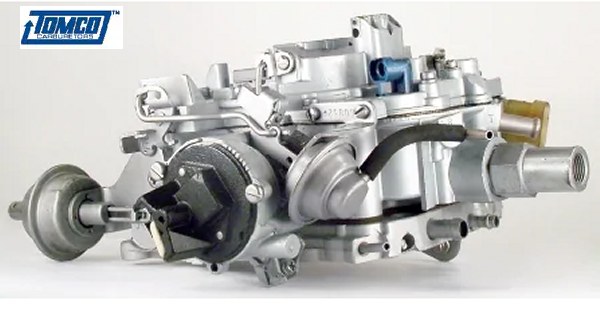

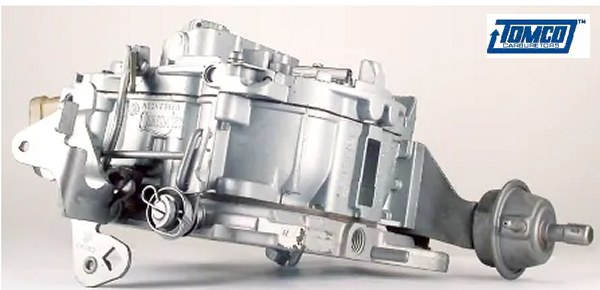

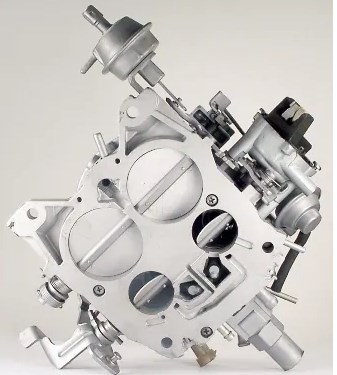

General Reference Picture of a
R4-E4MC
|
Actual Reference Picture |
||
| Disc: 80 BOP | Notes: Notes | ||
| Cyl: | Newcarb- | 64-80091 | |
| Rebuild Kit: | KT-5495B | ||
| Float: | FLT-100-44 | Acc Pump: | |
| Choke Pulloff Front: | PO-5218 | Acc Pump Cup: | |
| Choke Pulloff Rear: | PO-5185 | Needle & Seat: | N/S-31-542 |
| Choke Thermostat: | EC-80088184A | PowerValve: | |
| Jets: | Jets | ||
| Mixture Control Solinoid: | MCS-3 | Mettering Rods: | |
| Throttle Position Sensor: | Linkage Rods: | ||
| Fuel Fitting: FuelFilter: |
30-54 | Mixture Screw: | CUD35485 |
| Air Cleaner Gasket: | G702 |
Rebuilt Carburetor Ref Numbers |
|
| Bowl Gasket: | Rebuild Ref Number: | 4-464 | |
| Middle Gasket: | |||
| Base Gasket: | G119920-1466 | Core: | <<Core>> Search eBay |
|
Check the Rochester Parts Page for more parts |
|||
|
|
|
||
| This carburetor was made by Rochester , The Rochester Products Division of General Motors was located in Rochester New York and built carburetors for GM vehicles since 1949 . It is a R4-E4MC the E4MC is a Hot air side mounted choke with a Mixture Control Solinoid Rochester Quadrajet 4 barrel carburetor, which means the choke is located on the passenger side connected to the carburetor and draws hot air from the intake and has a Mixture Control Solinoid (normaly blue 1980 has black) .They started making them in 1980 and ran threw 1990. Most will have 1 inch 20 Fuel inlet . 1980 and up electronic quadrajets use a different metering rod . This carburetor has a part number of 17080554 and used on 80 BOP . Check here for specific Muscle car Info |
| Referenced by ; Rochester 17080554 |
