Jet Kits Base Gaskets and Chokes for Weber

ICT Series Jet Kits

The ICT and ICH Series 1 barrel downdraft carburetor. It's easily tailored to most OEM engine setups to produce good gas mileage and good performance .(Other uses include forklifts , snowmobiles and generators) - Carb

fits Weber Carb Part#
ICT / ICH Jet Kit - Dual Carb
701ICT
701ICT
ICT / ICH  - Base Gasket 99024.417
99024.417

Kits and Floats - Single Jets - Emulsion Tubes - Venturis - Air Cleaners

32/36 DGV DGAV DGEV and DFAV Series Jet Kits

Any search for the ideal 2-barrel, progressive down-draft carburetor would surely end with the DGV Series. look no further for versatility, wide adaptability, easy installation, low initial cost, trouble-free maintance, excellent drivability, increased fuel economy and improved performance. Designed for 4-6 cyl engines,  the DGV Series carbs feature diaphragm type accelerator pump circuits and models with manual, water or electric choke actuation. The DGV also has a power valve circuit to facilitate low vacuum running conditions. - Carb

fits Weber Carb Part#
32/36 Jet Kit 4cyl. fits Weber DGEV AV
Comes with Main(145,150,155 ) ,Idle (65,70,75 ) ,sec Idle (55,60) , Pump jet 55 and Air Corrector (160,170,180 ) jets in plastic case.
701DGV4
701DGV4
32/36 Jet Kit 4cyl. fits Weber DGV manual choke
Comes with Main(135,140, 145,150,155 ) ,Idle jets (50,55x2 ,60x2,65,70,75 ) , Pump jet 55 and Air Corrector (190, 200, 210, 215) jets in plastic case.
701DGV4M
701DGV4M
32/36 Jet Kit 6cyl. fits Weber DGEV AV
Comes with Main(150,155,160 ) ,Idle (75,80,85,90 ) ,sec Idle (60,65) , Pump jet 60 and Air Corrector (160,180,190 ) jets in plastic case.
701DGV6
701DGV6
32/36 High Altitude Jet Kit fits 4cyl Weber DGEV AV
Comes with Main jets Air corrector jets Idle jets for Altitudes from 2500-10000 ft in plastic case.

DGV Manual Choke CALL

701DGV4A
701DGV4A
32/36 High Altitude Jet Kit fits 6cyl Weber DGEV AV
Comes with Main jets Air corrector jets Idle jets for Altitudes from 2500-10000 ft in plastic case.

DGV Manual Choke CALL

701DGV6A
701DGV6A
DGAV DGEV AV Idle Solenoid (with larger Idle jet) 43928.060 43928.060
DGAV DGEV Electric Choke 57804.333
57804.333
32/36 Jet Kit fits Weber DFV DFAV
Comes with Main(145,150,155 ) ,Idle (65,70,75,80 ) ,sec Idle (55) , Pump jet 55 and Air Corrector (155,160,180 ) jets in plastic case.

( Will work with a 32/36 DGV Manual Choke but Pump jet does not work )
701DFV
701DFV
DFEV Electric Choke (reverse direction) 57804.332
57804.332
32/36 Base Gasket DGV DGAV DGEV DFAV 99005.068
99005.068

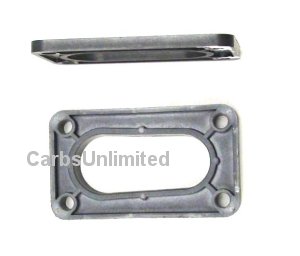

32/36 Base Spacer 7mm thick DGV DGAV DGEV DFAV 99005.119
99005.119
32/36 Base Spacer 12mm thick DGV DGAV DGEV DFAV 99005.120
99005.120

Kits and Floats - Single Jets - Emulsion Tubes - Venturis - Air Cleaners

38  Series Jet Kits

Greater improvements in throttle response at a slight penalty in fuel economy can be achieved by using the 38 DGAS  38 DGES synchronous-opening model. Both can be used as a high performance alternative to most any DGV applications
 4 to 8 cylinder engine setups - Carbs

fits Weber Carb Part#
38 Jet Kit fits Weber DGES / AS
Comes with Main(150,155,160 pairs) ,Idle (50,55,60) ,sec Idle (50,55,60) and Air Corrector (160,180,190 pairs) jets in plastic case.
701DGS
701DGS
DGES , DGAS Electric Choke 57804.333
57804.333
 DGES , DGAS 38 Base Gasket 99005.065
99005.065

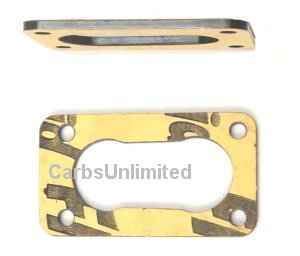

 DGES , DGAS 38 Base Gasket Spacer 7mm 99900.624
99900.624

Kits and Floats - Single Jets - Emulsion Tubes - Venturis - Air Cleaners

IDF Series Jet Kits

IF you find it Cheaper We will Beat It !!! Just Call 1-800-994-2272
With its central float chambers, full calibration capabilities, compact alloy body and wide variety of available sizes, the IDF Series has been and continues to be the winning choice for a synchronous, 2 barrel, downdraft carburetor. The IDF features diaphragm type accelerator pump circuits and ball bearing throttle shafts. When used with an adapter, the IDF will replace the Solex 40 PII carburetors used on many Porsches. The IDF is ideal for use on most opposed-cylinder engines, or on engines where the intake ports are nearly vertical. Offering relative low cost for performance gained, the IDF is hard to beat.  - Carb

fits Weber Carb Part#
fits Weber IDF Jet Idle Kit - Single Carb
Idle (55,60,65,70 pairs) 1 zero bypass jet , 2 pump jets (55) in plastic case.
702-IDF-1
702-IDF-1
fits Weber IDF Jet Main Kit - Single Carb
Single 40/44/45mm carburetor, venturi range 28-32mm, Typical displacement of up to 1900cc - mains: (120, 130, 135, 145 pairs) air jets: (160, 170, 180, 185 pairs) 2-F7 emulsion tubes for the IDF
737-144
737-144
fits Weber IDF Jet Idle Kit - Dual Carb
Idle (55,60,65,70 4ea.) 2 zero bypass jets , 4 pump jets (55) in plastic case.
702-IDF-2
702-IDF-2
fits Weber IDF Jet Main Kit - Dual Carb
Dual 40/44/45 mm carburetors, venturi range 28-32mm Typical displacement of up to 2000cc - mains: (110, 120, 125, 130 -4ea) air jets: (180, 190, 210, 215 -4ea)
737-240
737-240
fits Weber IDF Jet Main Kit - Dual Carb
Dual 44/45/48mm carburetors, venturi range 34-36mm Typical displacement of 2000cc and larger - mains: (130, 140, 145, 150 -4ea) air jets: (170, 180, 190, 200 -4ea)
737-244
737-244
fits Weber IDF Jet Main Kit - Dual Carb
Dual 44/45/48mm carburetors, venturi range 38-40mm Typical displacement of 2000cc and larger - mains: (145, 155, 160, 165 -4ea) air jets: (175, 190, 200, 210 -4ea)
737-248
737-248
40 IDF Base Gasket
Dense fibrous, Anti-vibration paper
need 2 per carb
99005.121
99005.121
44 IDF Base Gasket Carburetor
Dense fibrous, Anti-vibration paper
need 2 per carb
99005.122
99005.122
 48 IDF Base Gasket Carburetor
Dense fibrous, Anti-vibration paper
need 2 per carb
99005.123
99005.123

Kits and Floats - Single Jets - Emulsion Tubes - Venturis - Air Cleaners

DCOE Series Jet Kits

IF you find it Cheaper We will Beat It !!! Just Call 1-800-994-2272
With a Grand Prix Racing heritage, the venerable DCOE is Weber's premier Carburetor, and still the standard by which all other carburetors are measured. It is unsurpassed for full-race use, yet its infinite tunabilty by way of interchangeable calibrated parts allows it to be tailored to suit any engine and application. Hardly enough can be said about the DCOE. Its features include: ball bearing throttle shafts, piston type accelerators pump circuits, a wide variety of throttle bore sizes.. and, of course, the excellence that is Weber. - Carb

fits Weber Carb Part#
DCOE Jet Main Kit - Dual Carb
Dual 40/44/45 mm carburetors, venturi range 28-30mm Typical displacement of 2000cc and larger - main jets: (110, 120, 125, 130 -4ea) air jets: (180, 190, 210, 215 -4ea)
737-240
737-240
DCOE Jet Main Kit - Dual Carb
Dual 44/45/48mm carburetors, venturi range 34-36mm Typical displacement of 2000cc and larger - main jets: (130, 140, 145, 150 -4ea) air jets: 9170, 180, 190, 200 -4ea)
737-244
737-244
DCOE Jet Main Kit - Dual Carb
Dual 44/45/48mm carburetors, venturi range 38-40mm Typical displacement of 2000cc and larger - main jets: (145, 155, 160, 165 -4ea) air jets: (175, 190, 200, 210 -4ea)
737-248
737-248
40-45 DCOE Thick Base Gasket   99005.031
40-45 DCOE Soft Mount O-ring Base Gasket 99005.145
99005.145
48 DCOE Soft Mount O-ring Base Gasket 99005.150
99005.150

Kits and Floats - Single Jets - Emulsion Tubes - Venturis - Air Cleaners

DCO-SP Jet Kits
Still the standard by which all other carburetors are measured, the DCO is the ultimate side draft carburetor.
 It is unsurpassed for full-race use - Carb
fits Weber Carb Part#
50-55 DCO Soft Mount O-ring Base Gasket 99005.150
99005.150


CALL

Kits and Floats - Single Jets - Emulsion Tubes - Venturis - Air Cleaners

V-8 Jet Kits
V-8 Weber IDF or IDA Setups
Carb Part#
8 Each of 4 Different Sizes of Main Jets.
32 Pieces your choice of sizes
99005.cu1 CALL
8 Each of 2 Different Sizes of Idle Jets.
16 Pieces your choice of sizes
99005.cu2 CALL
8 Each of 4 Different Sizes of Air Corrector Jets
32 Pieces your choice of sizes
99005.cu3 CALL
