DHLA Calibrated Parts |
||||||
|
High Quality flow tested jets |
||||||
|
||||||
|
Online ordering anytime 24 x 7 |
||||||
|
|
||||||

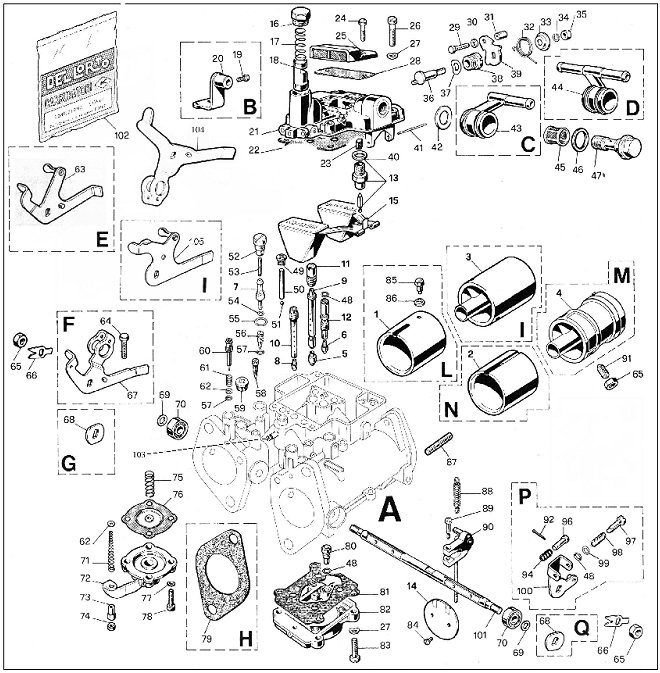

| 1. DHLA 48 Venturi/Choke | DEL8564.xx (41-43mm) | |||||
| 2. DHLA 40 Venturi/Choke | DEL8383.xx (25-37mm) | |||||
| 3. DHLA 45/48 Venturi/Choke | DEL7956.xx (31-40mm) | |||||
| 4. DHLA 40 Auxiliary venturi | DEL7948.x (1-5) | |||||
| 5. DHLA/DRLA/DHLB etc. main jet | DEL7484.xxx | |||||
| 6. DHLA / DRLA idle jet | DEL7644.xx | |||||
| 6. DHLA long idle jet | DEL8391.xx | |||||
| 7. DHLA / DRLA / PHM / PHF pump jet | DEL7851.xx | |||||
| 8. DHLA / DRLA Starter jet | DEL3315.xx | |||||
| 9. DHLA/DHLB Emulsion tube | DEL7772.x | |||||
| 10. Starter emulsion tube | DEL7482.x | |||||
| 11. Air corrector jet | DEL7485.xxx | |||||
| 12. Idle Jet Holder | DEL7850.x | |||||
| 13. Needle and Seat Brass Tip | DEL8811.xxx | |||||
| 13A. Needle and Seat Viton Tip | DEL8809.xxx | |||||
| 14. Butterfly 40 | DEL7841 | |||||
| 14A. Butterfly 45 | DEL8010 | |||||
| 14B. Butterfly 48 | DEL8563 | |||||
| 15. DHLA Float | CUFDHLA | |||||
| 16. DHLA / DHLB choke piston cover nut | DEL7501 | |||||
| 17. DHLA / DRLA Choke piston spring | DEL7413 | |||||
| 18. Choke Piston | DEL9609 late / DEL7548 early | |||||
| 19. Choke cable clamp screw | DEL6434 | |||||
| 20. Choke cable support | DEL7488 | |||||
| 21.Cover | ||||||
| 22. DHLA Top casting gasket – standard | DEL9358 | |||||
| 23. | ||||||
| 24. Jet Cover Screw | DEL7530 | |||||
| 25. Jet Cover | DEL7549 | |||||
| 26. Screw | DEL14231 | |||||
| 27. Spring Washer | DEL4997 | |||||
| 28. Jet Cover Gasket | DEL7511 | |||||
| 29. Choke cable bolt | DEL7062 | |||||
| 30. Choke cable washer | DEL6850 | |||||
| 31. Choke cable nut | DEL6432 | |||||
| 32. DHLA Choke return spring | DEL7854 | |||||
| 33. Choke return spring cup washer | DEL7838 | |||||
| 34. Spring washer | DEL4957 | |||||
| 35. Nut | DEL2906 | |||||
| 36. DHLA Choke actuator cam | DEL7498 (Early) DEL9610 (late) | |||||
| 37. DHLA Choke actuator cam / spindle spring washer | DEL7837 | |||||
| 38. Dellorto DHLA Choke actuator cam bush | DEL7853 | |||||
| 39. Choke actuating lever | DEL7341 | |||||
| 40. Needle valve washer | DEL6425 | |||||
| 41. Float pivot pin | DEL7503 | |||||
| 42. Fuel banjo fibre washer – Inner | DEL7663 | |||||
| 43. DHLA Fuel banjo – Single | DEL7660 | |||||
| 44. DHLA Fuel banjo – T piece | DEL7661 | |||||
| 45. Early banjo filter | DEL1419.29 | |||||
| 46. Dellorto Fuel banjo fibre washer – Outer | DEL7662 | |||||
| 47. DHLA DHLB Fuel banjo bolt | DEL7659 | |||||
| 48. O ring | DEL7540 | |||||
| 49. DHLA / DRLA Pump weight cap screw 6mm | DEL7513 | |||||
| 49. DHLA / DRLA Pump weight cap screw 8mm | DEL9569 | |||||
| 50. Pump jet weight | DEL7525 | |||||
| 51. Pump jet ball 3.96mm | DEL6415 | |||||
| 52. Pump jet holder | DEL10747 | |||||
| 53. Pump jet filter | DEL10748 | |||||
| 54. Pump jet holder fibre washer 12mm OD 9mm ID | DEL6426 | |||||
| 55. Pumpjet Washer | DEL6426 | |||||
| 56. Air bleed screw 3 styles | DEL8176 | |||||
| DEL8382 | ||||||
| DEL9926 | ||||||
| 57. Dellorto Mixture screw O ring | DEL8678 | |||||
| 58. Vacuum blanking screw | DEL7959 | |||||
| 59. Progression hole cover | 61015.009 10mm / DEL8857 9.9mm across threads | |||||
| 60. Mixture screw 5 styles | DEL8025(early) DEL8381 DEL9335 DEL11068 DEL9656 | |||||
| 61. Mixture screw spring for 8025 8381 | DEL9336 | |||||
| 62. Washer | DEL4650 | |||||
| 63. | ||||||
| 64. Throttle stop Screw (fine thread) M5 x 0.5mm | DEL9754 | |||||
| 64. Throttle stop Screw (coarse thread) | DEL6898 | |||||
| 65. Nut – Spindle / grub screw locking | DEL6423 | |||||
| 66. Shaft Nut lock tab | DEL6581.23 | |||||
| 67. Levers 4 types | DEL7516 / DEL10714-L / DEL8304 / DEL10509 | |||||
| 68. Spindle end cover | DEL7958 / 55555.010 | |||||
| 69. Spindle washer | DEL7537 | |||||
| 70. Spindle Bearing | DEL7490 | |||||
| 71. DHLA pump rod spring – Long | DEL7208 | |||||
| 72. Pump cover assembly many diff types | DEL7443CB | |||||
| 73. DHLA Pump rod adjuster nut | DEL7625 | |||||
| 74. Nut | DEL10315 | |||||
| *** Pump rod assembly 71,73,74 and rod | DHLApumpROD | |||||
| 75. pump Diaphram Spring | DEL7626 | |||||
| 76. pump Diaphram | DEL7626 | |||||
| 77. Spring washer | DEL5011 | |||||
| 78. Screw | DEL6429 | |||||
| 79. Base gasket | 40 / 99005.047 / 45 | |||||
| 80. Pump non return valve | DEL7542 | |||||
| 81. DHLA pump body gasket – Standard | DEL7509 | |||||
| 82. Pump body | DEL7444CB | |||||
| 83. Screw | DEL7526 | |||||
| 84. Butterfly screw | DEL6416 | |||||
| 85. DHLA choke retaining screw 48s only **NLA** | ||||||
| 86. Washer | DEL4957 | |||||
| 87. DHLA Trumpet stud – 39mm Long | DEL7630 | |||||
| 87. DHLA Trumpet stud - 25mm long | DEL7151 | |||||
| 88. DHLA Throttle Return Spring | DEL7957 | |||||
| 89. Pump rod clamp screw | DEL7667 | |||||
| 90. DHLA Pump rod assembly | DEL8307 | |||||
| 91. Venturi Grub Screw | DEL7507 | |||||
| 92. Spring washer | DEL4997 | |||||
| 97. Throttle stop screw | DEL6898 | |||||
| 98. Spring | DEL4670 | |||||
| 99. Washer | DEL4650 | |||||
| 100. Balance lever | DEL8304assembly | |||||
| 103. Return Spring Peg | DEL7951 | |||||
| 108. Balance lever Alfa type | DEL9759ASSY | |||||
| 116. Choke diffusor | DEL7535 | |||||
|
Most parts are availible but are special order |
||||||
|
|
||||||
