Carburetor Reference Sheet and Related Parts
|
|||
| Brand: Rochester | Type:
R4-4MV Quadrajet Qjet |
Number: 7036689 |
CU: 4-196 |
|
General Reference Picture of a
R4-4MV
|

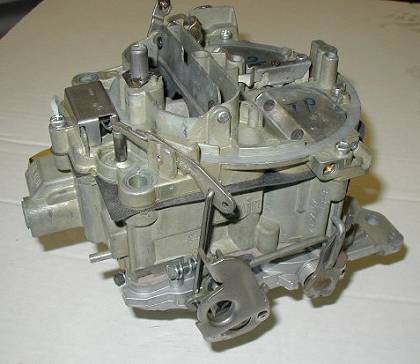

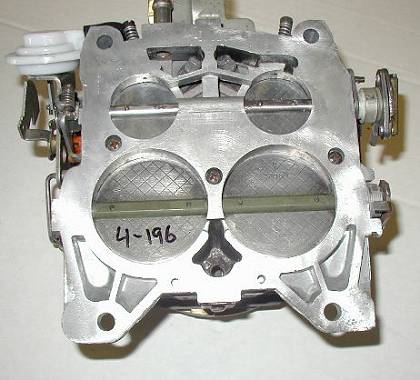

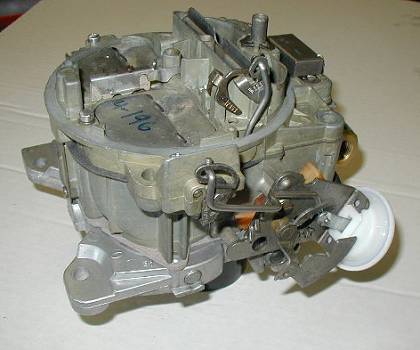

Actual Reference Picture |
||
| Disc: 67 Olds | Notes: Notes | ||
| Cyl:250 | Newcarb- | 64-7801 | |
| Rebuild Kit: | KT-5195C | ||
| Float: | FLT-100-6 | Acc Pump: | 82 |
| Choke Pulloff Front: | PO-5131P | Acc Pump Cup: | |
| Choke Pulloff Rear: | Needle & Seat: | N/S-31-542 | |
| Choke Thermostat: | PowerValve: | ||
| Jets: | Jets | ||
| Mixture Control Solinoid: | Mettering Rods: | ||
| Throttle Position Sensor: | Linkage Rods: | ||
| Fuel Fitting: FuelFilter: |
Mixture Screw: | ||
| Air Cleaner Gasket: |
Rebuilt Carburetor Ref Numbers |
||
| Bowl Gasket: | Rebuild Ref Number: | 4-196 | |
| Middle Gasket: | |||
| Base Gasket: | 20-2662G670 | Core: | <<Core>> Search eBay |
|
Check the Rochester Parts Page for more parts |
|||
|
|
|
||
| This carburetor was made by Rochester , The Rochester Products Division of General Motors was located in Rochester New York and built carburetors for GM vehicles since 1949 . It is a R4-4MV the 4MV is a divorce choke (remote choke) Rochester Quadrajet 4 barrel carburetor which means the choke is located on the intake manifold connected to the carburetor with a choke rod .They started making them in 1965 and ran threw 1974 trucks up to 1979. Most will have 7/8 inch 20 fuel inlet till 1971 and 1 inch 20 after . This carburetor has a part number of 7036689 and used on 67 Olds . Check here for specific Muscle car Info |
| Referenced by ; Rochester 7036689 |
