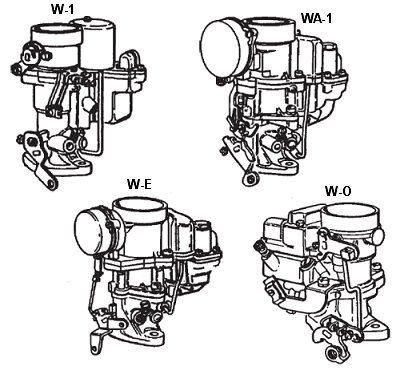

Carter W-1 WA-1 WE WO Parts
Chokes , Floats , Kits , Rebuilt Carbs
Part#

Description

Application Order
Carbs Numbers and Kits By Aplication
W-1 (AF2001) - 483S 492S 515S 569S 570S 574S 589S 616S 585SA
W-1 (AF2015) 212S 222SA 235S 255S 259S 260S 266S 280S 283S 284S 285S 298S 306S 308S 314S 315S 319S 321S 322S 324S 327S 334S 335S 336S 338S 339S 340S 342S 346S 350S 351S 352S 357S 358S 359S 360S 361S 364S 371S 378S 382S 394S 395S 569S 391S 420S 434S 521S 545S
WA-1 (AF2011) - 410S 432S 433S 435S 462S 463S 464S 472S 473S 493S 494S 622S 962S
WE (AF2002) - 532S 627S 661S 715S 730S 989S 2108S 2190S 2417S
WO (AF2012) - 431S 444S 450S 453S 468S 507S 539S 567S 572S 584S 596S 636S 698S 853S 870S 897S 933S 934S 936S 984S 2184S 2189S
 Carter Springs

66-10

Choke pulloff
back Spring

3.95
Quant

66-51

Idle Adjusting Spring

.75
Quant

TD-2085

Universal Return
Spring and Bracket

4.29
Quant
 Throttle Shaft and linkage
22-124 5/16 Shafts 2.50ea
Quant

Carter W-1 WA-1 WE WO Screws More screws

16-9

Mixture screw

9.95
Quant

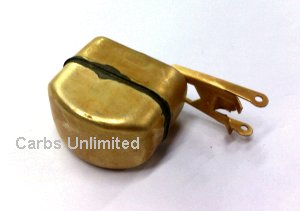

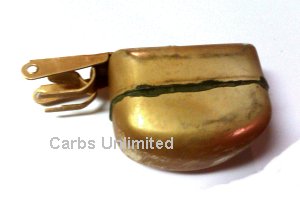

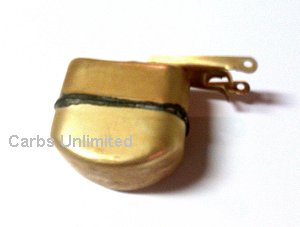

 Carter W1 WA1 WO Floats
Carter W1 Float CUD4175
Carter WA1 Float CUD4176
Carter WO Float CUD4177

 Carb Kits

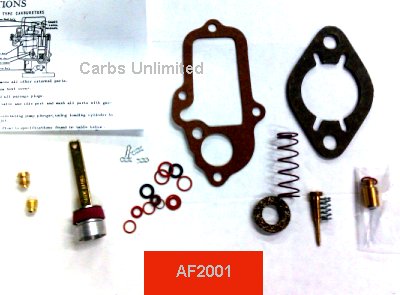

Fits Carter W-1 AF2001

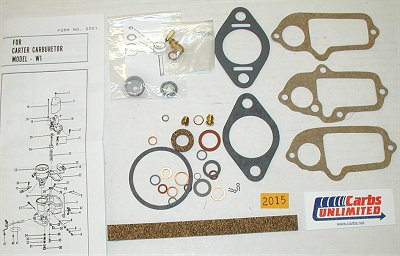

Fits Carter W-1 AF2015

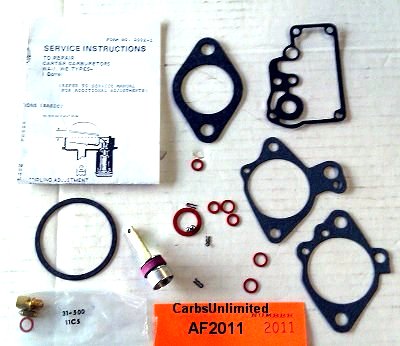

Fits Carter WA-1 AF2011

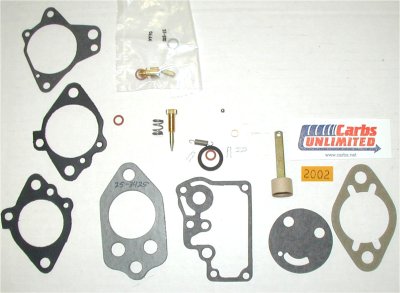

Fits Carter WE AF2002

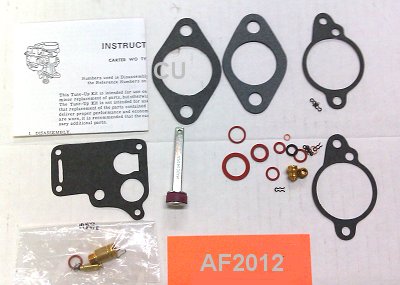

Fits Carter WO AF2012

 Misc

62-60

Rod Clip Retainer

1.99
Quant

62-50

Rod Clip Retainer

1.99
Quant

CU4001

Acc pump link

5.99 CU4001

30-70

Fuel Inlet
Strainer

2.99
Quant

CU31500

Needle And
Seat Carter W1

19.95
Quant

CU31512

Needle And
Seat most
Carter 1bbl WO

19.95
Quant

 Rods
R22 Throttle
Connector Rod
19.50
Quant

R33 Throttle
Connector Rod
19.50
Quant
Fuel fittings  [more fittings]

Fuel lines and filters


Carb Studs


Fuel
Fittings


 Chokes More Chokes
Choke Pulloff Rods
Choke Rods
40-4 Coke Cover 5.25
Quant

85-203 Coke Cover Retainers
Quant 3
3.95
quant 3
Quant

66-32 Choke Spring 9.95
Quant

GASKETS


W-1 Flange Stamps
Carter 212S has Flange Stamp 77
Carter 222S has Flange Stamp 81
Carter 235S has Flange Stamp 89

Carter 259S has Flange Stamp 03
Carter 260S has Flange Stamp 13

Carter 284S has Flange Stamp 220
Carter 285S has Flange Stamp 221

Carter 319S has Flange Stamp 265
Carter 321S has Flange Stamp 267

Carter 334S has Flange Stamp 265
Carter 335S has Flange Stamp 279

Carter 346S has Flange Stamp 292
Carter 358S has Flange Stamp 305
Carter 391S has Flange Stamp 337
Carter 420S has Flange Stamp 365
Carter 434S has Flange Stamp 373
Carter 483S has Flange Stamp 421
Carter 492S has Flange Stamp 432
Carter 574S has Flange Stamp 421
Carter 616S has Flange Stamp 432




C-1
Diagram
