 Misc Parts & Tools for Weber

Sync Tools

Sync Tool
Easy to use sync tool
with dial indicator
Made in Germany
(Watch out for cheap knock Offs)

$39.95
STE-SK



Sync Tool
Adjustable Flow for use with
1 to 4 barrel carbs
Easy to use sync tool
with dial indicator
Made in Germany

$39.95
STE-BK





STE Adapters




 Misc Parts for Weber



Choke block off plate and screws
Fits IDF & DCOE
$12.66
99005.135


Universal pedal assembly:

THROTTLE PEDAL & 48" CABLE


$43.75
TD4103

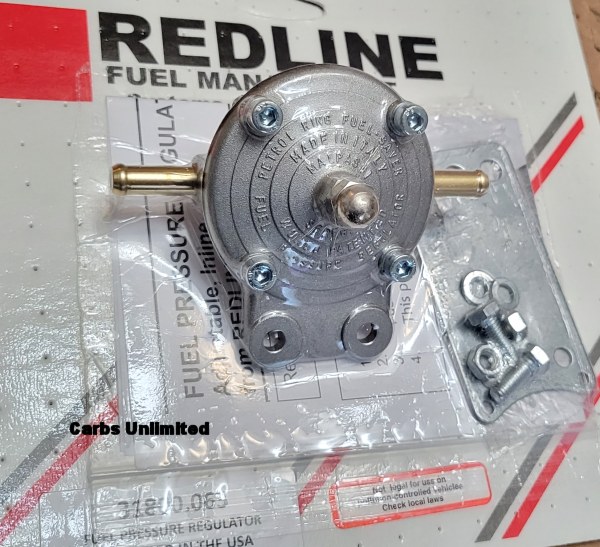

REGULATORS

Regulators


FUEL PUMPS

  • Standard Pressure high volume 3-4psi/34 GPH
  • For use on engines up to 200Hp
  • Inlet fitting ¼” barbed, outlet fitting ¼ barb tube.
  • This pump will maintain performance with Weber carburetors for all Street Performance and Off road applications.
  • Will handle Performance demands of duel or single carburetor applications.
99009.131



  • High Pressure High Volume (requires fuel Pressure regulator when used with Weber Carburetors) 8-14 psi / 64 gph
  • Inlets fitting 3/8 flange tube, outlet 1/4” barb tube. For use on engines up to 500 hp
  • This pump is, for all racing or applications where multiple carburetors are to be used with extended WOT high output operation is required
99009.182



Inline EFI Fuel Pump
For High Performance fuel injected applications. This high quality performance pump can support up to 450HP naturally aspirated, up to 325 HP forced induction. Also, this pump is very popular when used as a secondary pump, in series with your in-tank fuel pump, increasing the fuel volume to support 500 HP forced induction. This (out of tank) pump mounts with two supplied cushioned clamps for a quick and sturdy installation. We supply a larger inlet fitting 10.2mm I.D., fitting a 14mm inlet hose. Also available as an OPTION a 5/16” inlet hose fitting with 6.0mm I.D. The pump outlet hose size is also 5/16”. This pump will deliver 285 lbs per hour @ 13.5 volts, drawing only 6 amps at 45psi or 3 bar.  1 7/8” O.D. x 7 ¾” overall length

99009.113



Inline EFI Fuel Pump
For High Performance fuel injected applications.This high quality German made pump will support up to 450HP supplying 300 lbs per hour @ 13.5 volts, drawing 6 amps at 45psi. The pump inlet size is 14mm and the pump outlet fitting is 5/16”. A “foam” insulating cover is supplied for noise suppression. This pump is for 4.0 litre or smaller engine displacements, in racing or turbo applications, using multiple throttle bodies or used mainly at wide open throttle for extended periods of time.  2 ½” O.D. x 8” overall length.

99009.152

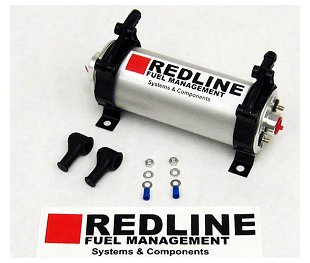

Fuel Pump 45psi
High Pressure High Volume
Up to 700HP naturally aspirated - 425lbs per hour @ 45psi



99009.190

Fuel Delivery Kit


Injection Fuel Delivery Kit
Kit is supplied complete with fuel pump,fittings, proper fuel line for both Low pressure high flow intake and proper hi pressure Injector supply side line. Redline also uses quality non tear hose clamps appropriate for fuel injection use. Kit also includes fuel filter, and regulator.

$ 270.00
99901.113

Injection Fuel Delivery Kit
Kit is supplied complete with fuel pump, fittings, proper fuel line for both Low pressure high flow intake and proper hi pressure Injector supply side line. Redline also uses quality non tear hose clamps appropriate for fuel injection use. Kit also includes fuel filter, and regulator.
This pump is for all racing or applications where multiple carburetors are to be used with extended WOT high output operation is required.

$ 310.00
99901.152

Other

DGV Snorkel Kit K551SKit Carb Assesories
