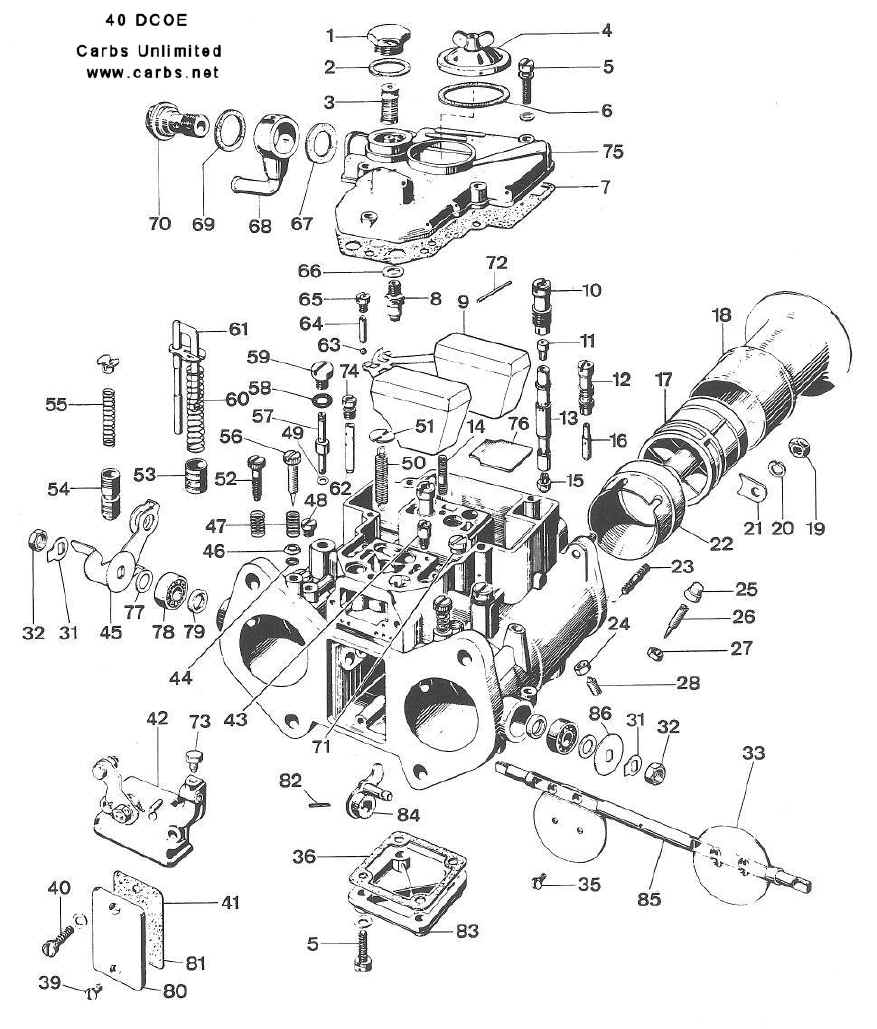

Weber 40 DCOE 151 Diagram


Click on Part Number for more information

Item # Quant Desc Part # New #

1

1

Filter Cover

61002.010

2

1

Filter Cover Gasket

41530.024

3

1

Filter Element

37022.002

37022.010

4

1

Jet Inspection Cover

32376.003

5

9

Screw

64700.001

6

1

Jet Inspection Cover Gasket

41550.002

7

1

Top Cover Gasket

41715.011

8

1

Needle Valve

79503.175

9

1

Float

41030.034

10

2

Emulsion Tube Holder

52580.001

11

2

Air Corrector Jet

77401.200

12

2

Idle Jet Holder

52585.006

13

2

Emulsion Tube

61450.031

14

1

Stud

64955.007

15

2

Main Jet

73401.115

16

2

Idle Jet

74822.045

17

2

Auxiliary Venturi

69912.450

18

2

Air Horn

52840.012

More Stacks

19

4

Air Horn Fixing Nut

34705.004

34715.010

20

4

Spring Washer

55525.010

21

4

Air Horn Tab

52150.012

22

2

Venturi (Choke Tube)

72302.300

23

4

Stud

64955.110

24

2

Lock Nut

34710.003

52155.003

25

2

Air By-Pass Screw Cap

14945.003

26

2

Air By-Pass Screw

64750.002

27

2

By-Pass Screw Lock Nut

34705.001

28

4

Locking Screw

64830.006

31

2

Lock Washer

55520.004

32

2

Throttle Spindle Nut

34710.003

33

2

Throttle Plate

64005.084

35

4

Throttle Plate Screw

64520.027

36

1

Bottom Cover Gasket

41640.001

39

2

Inspection Cover Fixing Screw

64750.009

40

2

Choke Cover Fixing Screw

64700.004

41

1

Pump Cover Gasket

41640.021

42

1

Choke Cover

32556.018

43

1

Pump Spill

79701.050

44

2

Idle Mixture Screw 'O' Ring

41565.002

45

1

Throttle Lever

45048.007

46

2

Idle Mixture Screw Cup Washer

58000.006

47

3

Spring

47600.007

48

2

Vacuum Take-Off Cover

64590.008

49

2

Pump Jet Gasket

41535.021

50

1

Throttle Spindle Return Spring

47605.012

51

1

Spring Anchor Plate

52210.006

52

1

Throttle Stop Screw

64625.012

53

1

Pump Plunger

58602.003

54

2

Starter Valve

64330.003

55

2

Starter Valve Spring

47600.105

56

2

Idle Mixture Screw

64750.003

57

2

Pump Jet

76801.040

58

2

Pump Jet 'O' Ring

41565.009

59

2

Pump Jet Cover

61015.008

60

1

Pump Rod Spring

47600.064

61

1

Pump Rod

10410.015

62

2

Starter Jet

75507.085

63

2

Pump Demand Valve Ball

58300.003

64

2

Pump Valve Weight

52730.001

65

2

Pump Demand Valve Cover

61015.006

66

1

Needle Valve Gasket

83102.120

67

1

Fuel Union Gasket

41530.031

68

1

Fuel Union

10536.035

More Fittings

69

1

Fuel Union Gasket

41530.024

70

1

Fuel Union Bolt

12715.008

71

2

Progression Hole Inspection Cover

61015.009

72

1

Float Pin

52000.001

73

1

Choke Cable Clamp

64605.017

74

2

Starter Air Jet

77505.150

75

1

Carburetor Top Cover

31734.197

76

1

Plate

52130.003

77

2

Washer

55510.128

78

2

Bearing

32650.001

79

2

'O' Ring

41575.019

80

1

Inspection Cover

52135.024

81

1

Gasket

41640.021

82

1

Pin

58445.001

83

1

Cover

32374.008

84

1

Pump Cam

45082.005

85

1

Throttle Spindle

10005.446

86

2

Washer

55555.010

Gasket rebuild kit



Original Specs Weber 40 DCOE 151

Main Jets 115 Emulsion Tubes F11
Air Corrector  Jets 200 Venturis 30mm
Idle Jets 45F9   Aux Venturis 4.50mm
Pump Jet 040 Needle Valve 1.75mm
Pump Exhaust Jet 050
