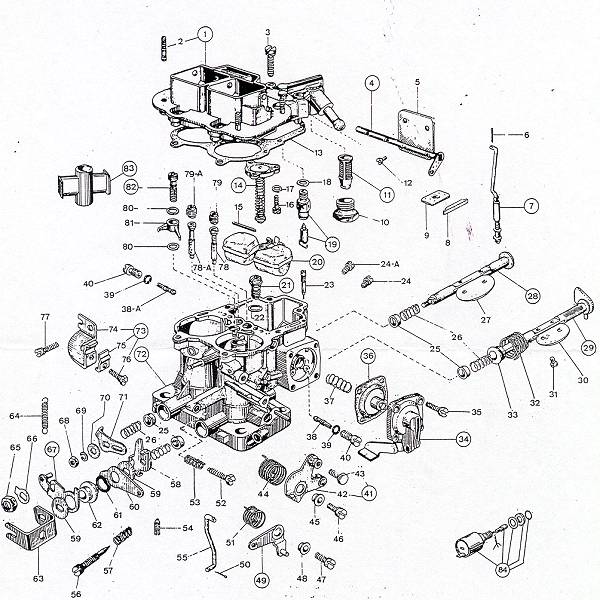

32/36 DGV Diagram
Manual Choke

Weber DGV manual choke

Weber DGV manual choke diagram
Ref # Quant Type Desc Part # New #
0 1 32/36 DGV Complete New Weber Carburetor 22680.005

1

1

32/36 DGV

Carburetor Cover Assy., Including

31716.132

2

4

32/36 DGV

Stud Bolt

64955.002

3

6

32/36 DGV

Carb. Cover Fixing Screw

64700.001

4

1

32/36 DGV

Choke Shaft & Lever Assy.

10020.222

5

2

32/36 DGV

Choke Valve

64010.007

6

1

32/36 DGV

Split Pin

32610.005

7

1

32/36 DGV

Choke Rod

61287.008

8

1

32/36 DGV

Dust Seat Plug

61070.002

9

1

32/36 DGV

Dust Seat Plate

52135.010

10

1

32/36 DGV

Strainer Inspection Plug

61002.018

11

1

32/36 DGV

Strainer Assy.

37022.003

12

4

32/36 DGV

Choke Plates Fixing Screw

64525.003

13

1

32/36 DGV

Carb. Cover Gasket

41705.035

41705.080

14

1

32/36 DGV

Carb. Power Valve Assy.

57804.052

15

1

32/36 DGV

Float Fixing Pin

52000.015

16

3

32/36 DGV

Control Valve Retaining Screw

64700.007

17

3

32/36 DGV

Washer for Control Valve Screw

55510.038

18

1

32/36 DGV

Needle Valve Gasket

41535.015

19

1

32/36 DGV

Needle Valve Assy.

79516(1)

20

1

32/36 DGV

Float Assy., Brass

41030.019

20a

1

32/36 DGV

Float Assy., Plastic

41030.020

21

1

32/36 DGV

Full Power Needle Valve Assy.

64235.016

22

1

32/36 DGV

Power Valve Gasket

41530.013

23

1

32/36 DGV

Pump Discharge Blanking Needle

64900.001

24

1

32/36 DGV

Primary Main Jet

73801(1)

24a

1

32/36 DGV

Secondary Main Jet

73801(1)

25

4

32/36 DGV

Shaft Retaining Bush

12750.085

26

4

32/36 DGV

Bush Retaining Spring

47600.027

27

1

32/36 DGV

Secondary Throttle Valve

64005.034

28

1

32/36 DGV

Secondary Shaft

10015.492

28a

1

32/36 DGV

Secondary Shaft Assy. Oversize

10016.477

29

1

32/36 DGV

Primary Shaft

10015.493

29a

1

32/36 DGV

Primary Shaft Assy. Oversize

10016.476

30

1

32/36 DGV

Primary Throttle Valve

64005.090

31

4

32/36 DGV

Throttle Plates Fixing Screw

64520.023

32

1

32/36 DGV

Shaft Return Spring

47610.079

33

1

32/36 DGV

Spacer

12765.047

34

1

32/36 DGV

Accel Pump Cover Assy.

32486.037

35

4

32/36 DGV

Pump Cover Fixing Screw

64700.006

36

1

32/36 DGV

Accel Pump Diaphragm Assy.

47407.048

37

1

32/36 DGV

Pump Loading Spring

47600.092

38

1

32/36 DGV

Primary Idle Jet

74403(1)

38a

2

32/36 DGV

Secondary Idle Jet

74403(1)

39

2

32/36 DGV

Gasket for Idling Jet Holder

41565.002

40

2

32/36 DGV

Idling Jet Holder

52570.006

41

1

32/36 DGV

"Choke Control Lever Assy., Including"

45202.064

42

1

32/36 DGV

- Lever

45202.065

43

1

32/36 DGV

- Screw Securing Wire

64615.004

44

1

32/36 DGV

Spring for Choke Lever

47610.058

45

1

32/36 DGV

Bushing for Choke Lever

12775.010

46

1

32/36 DGV

Choke Lever Fixing Screw

64700.012

47

1

32/36 DGV

Square Lever Fixing Screw

64700.012

48

1

32/36 DGV

Bushing for Square Lever

12775.010

49

1

32/36 DGV

Fast Idle Control Square Lever Assy.

45096.025

50

1

32/36 DGV

Split Pin

32610.005

51

1

32/36 DGV

Spring for Square Lever

47610.033

52

1

32/36 DGV

Primary Throttle Adjusting Screw

64625.017

53

1

32/36 DGV

Spring Throttle Adjusting Screw

47600.007

54

1

32/36 DGV

Secondary Throttle Adjusting Screw

64595.005

55

1

32/36 DGV

Fast Idling Control Rod

61280.086

56

1

32/36 DGV

Idle Adjusting Screw

64750.025

57

1

32/36 DGV

Spring for Idle Adjusting Screw

47600.007

58

1

32/36 DGV

Primary Throttle Control Lever

45046.020

59

2

32/36 DGV

Washer for Loose Lever

55510.061

60

1

32/36 DGV

Fast Idling Loose Lever

45067.024

61

1

32/36 DGV

Wavy Washer

55530.002

62

1

32/36 DGV

Bushing for Loose Lever

12775.006

63

1

32/36 DGV

Throttle Valve Control Lever

45136.029

64

1

32/36 DGV

Spring for Loose Lever

47605.010

65

1

32/36 DGV

Throttle Shaft Fixing Nut

34715.014

66

1

32/36 DGV

Lock Washer

55520.002

67

1

32/36 DGV

Loose Lever Assy.

45069.011

68

1

32/36 DGV

Secondary Shaft Fixing Nut

34705.001

69

1

32/36 DGV

Spring Washer

55525.001

70

1

32/36 DGV

Washer for Loose Lever

55510.046

71

1

32/36 DGV

Secondary Throttle Control Lever

45032.124

72

1

32/36 DGV

Carburetor Body

Call

73

1

32/36 DGV

Sheath Support Assy., Including

58702.024

74

1

32/36 DGV

- Sheath Support

58700.028

75

1

32/36 DGV

- Sheath Securing Plate

52145.001

76

1

32/36 DGV

- Sheath Plate Fixing Screw

64615.007

77

1

32/36 DGV

Sheath Support Fixing Screw

64700.012

78

1

32/36 DGV

Primary Emulsioning Tube

61440.216

78a

1

32/36 DGV

Secondary Emulsioning Tube

61440.211

79

1

32/36 DGV

Primary Air Corrector Jet

77201(1)

79a

1

32/36 DGV

Secondary Air Corrector Jet

77201(1)

80

2

32/36 DGV

Pump Jet Gasket

41530.012

81

1

32/36 DGV

Accel Pump Jet

76226(1)

82

1

32/36 DGV

Pump Delivery Valve Assy.

64290.017

83

1

32/36 DGV

Auxiliary Venturi

71111(1)

84

1

32/36 DGV

Idle Cut-Off Solenoid .050

43903.050

84

1

32/36 DGV

Idle Cut-Off Solenoid .055

43903.055

84

32/36 DGV

Idle Cut-Off Solenoid .060

43903.060

32/36 DGV Base Gasket 99005.068
32/36 DGV Rebuild Kits
32/36 DGV Jet Kits
32/36 DGV Air Cleaners
32/36 DGV Complete New Weber Carburetor 22680.005


Original Specs Weber 32/36 DGV 5A

Primary Main Jet 140 Primary Emulsion Tube F50
Secondary Main Jet 135 Secondary Emulsion Tube F6
Primary Air Corrector  Jet 165 Primary Venturi 26mm
Secondary Air Corrector Jet 160 Secondary Venturi 27mm
Primary Idle Jet 055 Primary Aux Venturi 3.50mm
Secondary Idle Jet 050 Secondary Aux Venturi 3.50mm
Pump Jet 050 Needle Valve 2.00mm
