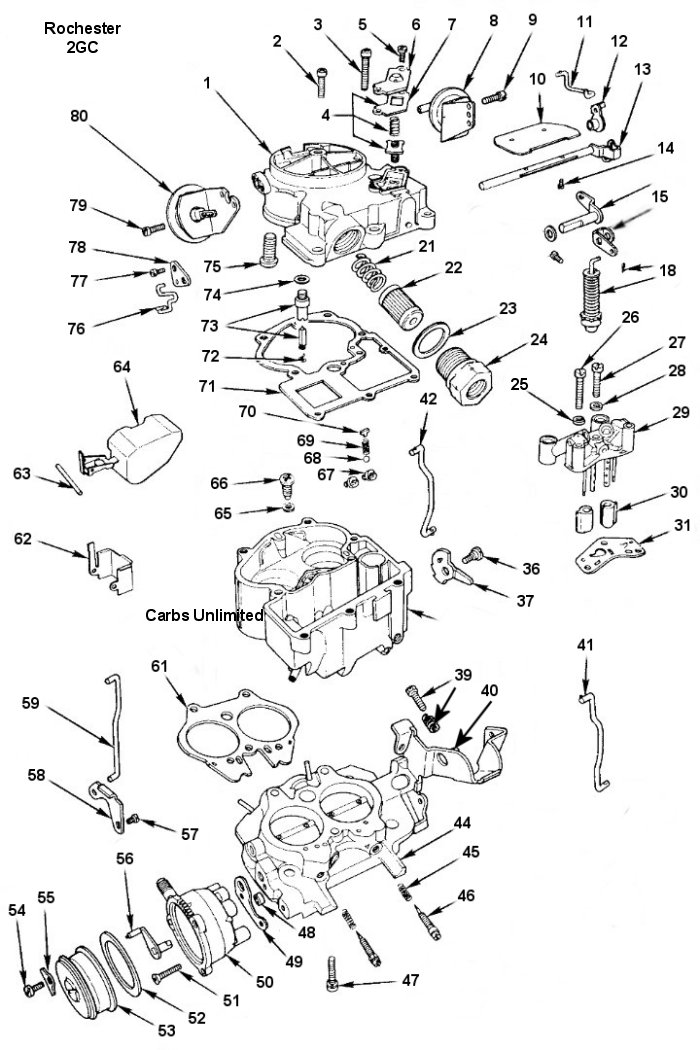

Description Rochester 2GC 2bbl
1- Bare airhorn top pic not availible
2- Screw - Airhorn
3- Screw - Airhorn long
4- Idle vent valve
5- Screw - vent valve cover
6- Vent valve cover
7- Gasket - Vent valve
8- Pull off
9- Screw - Pulloff
10- Choke Flapper
11- Pulloff link
12- Choke shaft lever
13- Choke shaft
14- Choke flapper screw
15- Pump shaft and lever
16- Pump lever inside
17- Clip
18- Acc Pump
19- Screw - inside pump lever
20- Seal - choke rod
21- Fuel filter spring
22- Fuel filter
23- Seal - Fuel inlet
24- Fuel Inlet fitting
25- Lock washer
26- Venturi cluster screw outer
27- Venturi cluster screw center
28- Center screw gasket
29- Venturi cluster
30- Main well inserts
31- Venturi cluster gasket
32-
33-
34-
35-
36- Fast idle cam screw
37- Fast idle cam
38- Main body
39- Idle stop screw
40- Throttle shaft
41- Acc pump rod
42- Fast idle cam rod
43- Clip
44- Carb base
45- Spring - Mixture screw
46- Mixture screw
47- Screw - Throttle body base
48-Seal - Choke shaft
49- Choke housing gasket
50- Choke housing
51- Screw -Choke housing
52- Gasket - Choke
53- Choke cover and spring
54- Screw - Choke cover
55- Retainer - Choke cover
56- Intermediate choke shaft lever
57- Screw - Intermediate choke lever
58- Intermediate choke lever
59- Choke rod
60-
61- Throttle gasket
62- Fuel baffle
63- Float pin
64- Float
65- Gasket - powervalve
66- Power valve
67- Jets
68- Check ball
69- Checkball spring
70- Check ball T
71- Airhorn gasket
72-
73- Needle and seat
74-
75- Power valve piston Most are availible Used or refurbished Call 1-800-994-2272 for quote
76- Pulloff link
77- Screw - choke lever
78- Choke lever
79- Screw - pulloff
80- Pulloff
