FUEL INJECTION

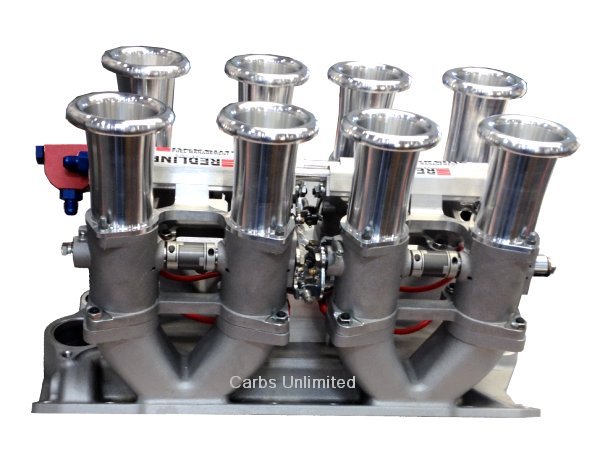

Shown with optional 100mm Tall Stacks


We offer fuel injection kits to fit most of your V-8 needs.  All kits are set up with the fuel rails in the middle of the V for proper fuel distribution and drivability. They also include our billet center linkage kit, and vacuum accumulator.

REDLINE supplies complete throttle body kits and ECU kits that include the following parts:

  • Fuel TB Kit
  • Four throttle bodies
  • Inlet manifold
  • Billet capstan linkage kit with 36" cable
  • Fuel rail kit with AN fittings
  • Fuel pressure regulator
  • Air horns
  •

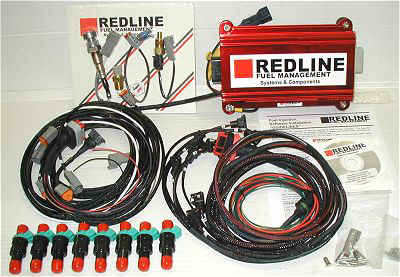

  • ECU Kit
  • Computer Control Unit
  • Programmable Software
  • ECU loom
  • Sensors O2 Sensor , Air Temp Sensor , TPS Sensor MAP Sensor , Ambient Sensor
  • Fuel Injectors
  •


WE CAN CUSTOMIZE YOUR SETUP TO FIT YOUR NEEDS
Special Jetting ,Pull down the center linkage Just CALL for info 1-800-994-CARB (2272)

Carbureted Versions Available CALL for info
.

Model Kit # Fuel TB Kit Fuel TB Kit & ECU Kit


K350-INJ
Small Block Chevy

283-350

$ 3377.00 Includes:

  • Four throttle bodies 50mm

  • Intake manifold

  • Billet capstan linkage kit with 36" cable

  • Fuel rail kit with AN fittings

  • Fuel pressure regulator

  • Air horns

  • Fuel TB Kit (shown at left)

  • Computer Control Unit

  • Programmable Software

  • Complete wire loom

  • Sensors O2 , Air Temp , TPS , MAP , Ambient

  • Fuel Injectors

  • Installation kit

K350-INJ-IDF

K350-INJ-IDA


K350-DINJ
Small Block Chevy

283-350

$ 3477.00 Includes:
  • Four throttle bodies DCOE

  • Intake manifold

  • Billet capstan linkage kit with 36" cable

  • Fuel rail kit with AN fittings

  • Fuel pressure regulator

  • Air horns

$ CALL

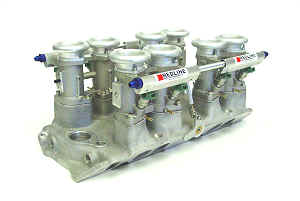

K396-INJ
Big Block
Chevy

$ 3695.00 Includes:

  • Four throttle bodies 50mm

  • Intake manifold

  • Billet capstan linkage kit with 36" cable

  • Fuel rail kit with AN fittings

  • Fuel pressure regulator

  • Air horns

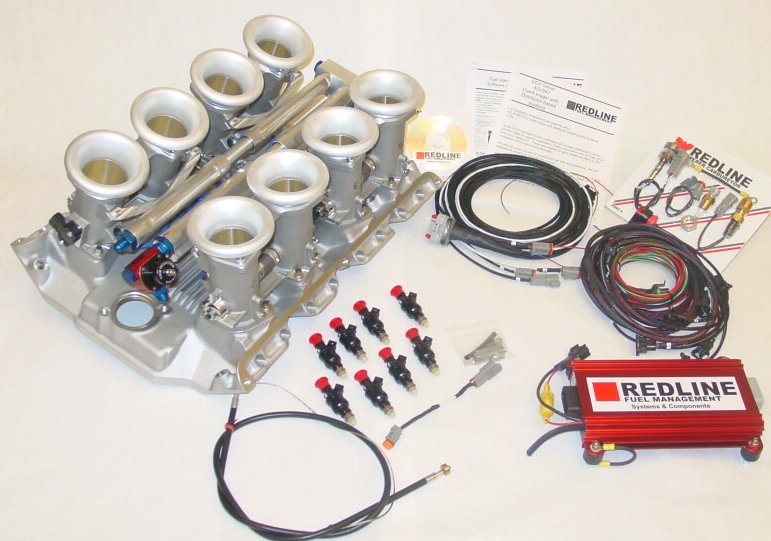

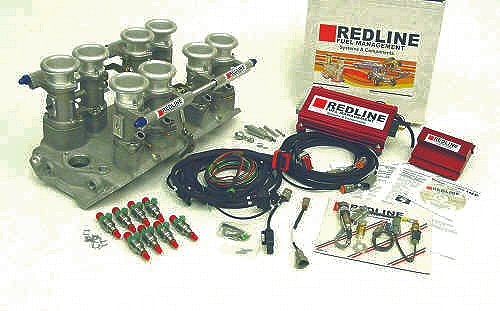

$ 5395.00 Includes:

  • Fuel TB Kit (shown at left)

  • Computer Control Unit

  • Programmable Software

  • Complete wire loom

  • Sensors O2 , Air Temp , TPS , MAP , Ambient

  • Fuel Injectors

  • Installation kit

  • Picture

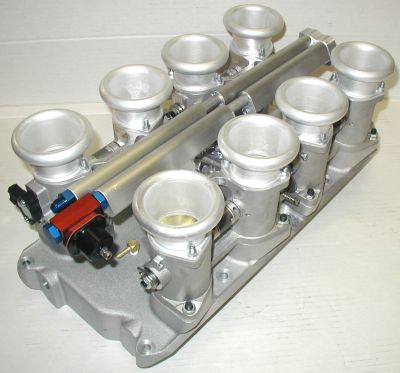

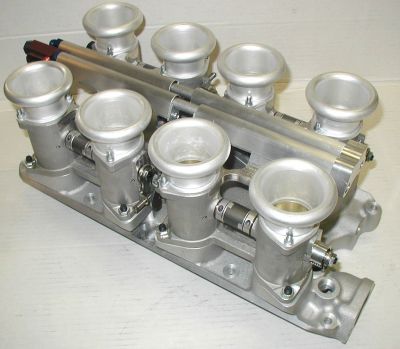

  K302-INJ
Small Block Ford
302
Pic
Pic2

$ 3477.00 Includes:

  • Four throttle bodies

  • Intake manifold

  • Billet capstan linkage kit with 36" cable

  • Fuel rail kit with AN fittings

  • Fuel pressure regulator

  • Air horns

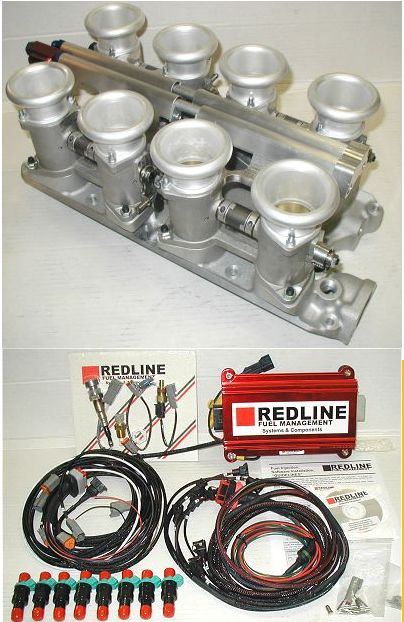

$ 5395.00 Includes:

  • Fuel TB Kit (shown at left)

  • Computer Control Unit

  • Programmable Software

  • Complete wire loom

  • Sensors O2 , Air Temp , TPS , MAP , Ambient

  • Fuel Injectors

  • Installation kit

  • Picture


K351w-INJ
Small Block Ford
351
 Windsor

$ 3477.00 Includes:

  • Four throttle bodies 50mm

  • Intake manifold

  • Billet capstan linkage kit with 36" cable

  • Fuel rail kit with AN fittings

  • Fuel pressure regulator

  • Air horns

$ 5395.00 Includes:

  • Fuel TB Kit (shown at left)

  • Computer Control Unit

  • Programmable Software

  • Complete wire loom

  • Sensors O2 , Air Temp , TPS , MAP , Ambient

  • Fuel Injectors

  • Installation kit

  •

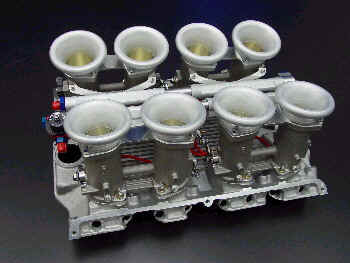

K427-INJ

Big Block Ford
427

$ 3995.00 Includes:

  • Four throttle bodies 58mm

  • Intake manifold

  • Billet capstan linkage kit with 36" cable

  • Fuel rail kit with AN fittings

  • Fuel pressure regulator

  • Air horns

$ 5995.00 Includes:


K460-INJ

Big Block Ford
429, 460, C.J./Wedge

$ 4495.00 Includes:

  • Four throttle bodies 58mm

  • Intake manifold

  • Billet capstan linkage kit with 36" cable

  • Fuel rail kit with AN fittings

  • Fuel pressure regulator

  • Air horns

$ 6595.00 Includes:

  • Fuel TB Kit (shown at left)

  • Computer Control Unit

  • Programmable Software

  • Complete wire loom

  • Sensors O2 , Air Temp , TPS , MAP , Ambient

  • Fuel Injectors

  • Installation kit

  •



K61-INJ

6.1
Hemi

$ 4277.00 Includes:

  • Four throttle bodies (Black powder coating extra)

  • Intake manifold

  • linkage kit with 36" cable

  • Fuel rail kit with AN fittings

  • Fuel pressure regulator

  • Air horns

$ 6295.00 Includes:

  • Fuel TB Kit (shown at left)

  • Computer Control Unit

  • Programmable Software

  • Complete wire loom

  • Sensors O2 , Air Temp , TPS , MAP , Ambient

  • Fuel Injectors

  • Installation kit

  •


Extras


100mm Tall Stacks
Upgrade Only
Price
$ 400.00

75mm Tall Stacks
Upgrade Only
Price
$ 400.00



Set of 8

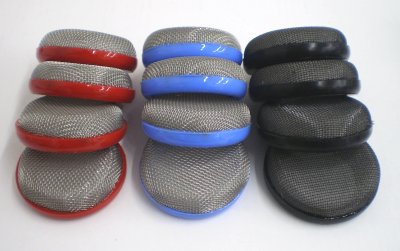

Stack Screen Filters 3 3/8
Upgrade Only
Price
$ CALL


ECU R882D
Fuel & dist ignition,
8 Injectors, 1 coil
99882.281
$ CALL



ECU R882C
Fuel & Crank Trigger ign, 8 inj, 8 x single coils
99882.388-8
$ CALL


  Fuel Injectors


Fuel Delivery Kit
99901.152


Kit is supplied complete with fuel pump, fittings, proper fuel line for both Low pressure high flow intake and proper hi pressure Injector supply side line. Redline also uses quality non tear hose clamps appropriate for fuel injection use. Kit also includes fuel filter
This pump is for all racing or applications where multiple carburetors are to be used with extended WOT high output operation is required.
$ 309.00

Crank Trigger Wheel & Sensor $ 199.00

Polished Intake
(Takes 2 to 4 weeks)
Add
$ 950.99

Polished Stacks Add
$ 5.00ea.

Other stacks and filters

Redline Regulators and pumps
