4 & 6 Cylinder
FUEL INJECTION




Porche & VW Kit


We offer fuel injection kits to fit most of your 4 CYL needs.  All kits are set up with the fuel rails for proper fuel distribution and drivability. They also include linkage kit. ( Manifolds Sold separately )

REDLINE supplies complete throttle body kits and ECU kits that include the following parts:

  • Fuel TB Kit
  • 2 throttle bodies
  • Linkage kit
  • Fuel rail kit with AN fittings
  • Fuel pressure regulator
  • Air horns (50 mm or 35 mm tall)
  •
  • ECU Kit
  • Computer Control Unit
  • Programmable Software
  • ECU loom
  • Sensors O2 Sensor , Air Temp Sensor , TPS Sensor MAP Sensor , Ambient Sensor
  • Fuel Injectors
  •
  • Crank Trigger Systems available please call

Intake Manifolds sold separately - Some Kits May Vary


WE CAN CUSTOMIZE YOUR SETUP TO FIT YOUR NEEDS
Just CALL for info 1-800-994-CARB (2272)

.

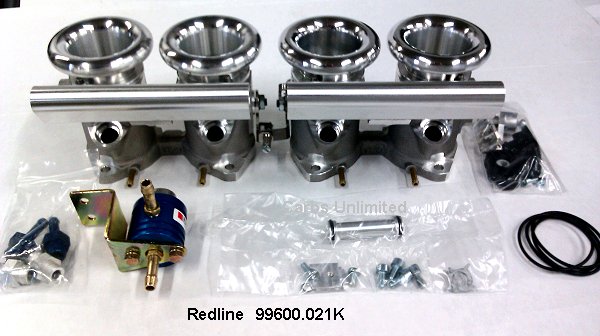

45 DCOE 2 inj 2 Throttle body kit
  • 2  45mm throttle bodies
    DCOE or IDF

  • Linkage kit

  • Fuel rail kit with AN fittings

  • Fuel pressure regulator

  • Air horns

  • Does Not include manifold

99600.021K

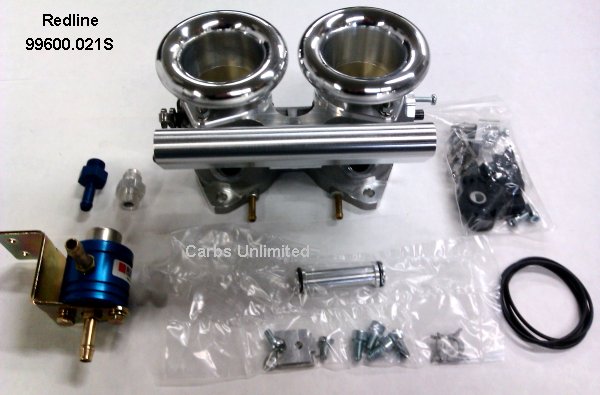

45 dcoe 2inj single body kit



  • 1  45mm throttle body
    DCOE or IDF

  • Linkage kit

  • Fuel rail kit with AN fittings

  • Fuel pressure regulator

  • Air horns

  • Does Not include manifold

99600.021S

Model Kit # Fuel TB Kit Fuel TB Kit & ECU Kit

Most
4cyl
Models

99600.021K

  • 2  45mm throttle bodies
    DCOE or IDF

  • Linkage kit

  • Fuel rail kit with AN fittings

  • Fuel pressure regulator

  • Air horns

  • Does Not include manifold

Starting at
$ 2799.95

  • Fuel TB Kit (shown at left)

  • Computer Control Unit

  • Programmable Software

  • Complete wire loom

  • Sensors O2 , Air Temp , TPS , MAP , Ambient

  • Fuel Injectors

  • Fuel Supply Kit 99901.113

  • Installation kit




Mazda Rotary Fuel Injection

CALL

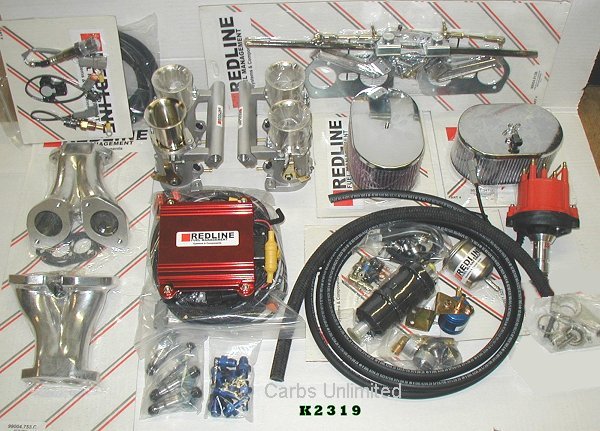

K2319 CDD
Porche
VW

Fuel Injection

Fuel
  • 2  45mm IDF throttle bodies
    Optional 48mm 50mm

  • Fuel injectors 32lbs
    Optional 34lbs - 40lbs

  • Linkage kit

  • Fuel rail kit with AN fittings

  • Fuel pressure regulator

  • Air Cleaners

  • Includes manifolds

  • Fuel pump with hose and conectors

Ignition & ECU

  • ECU
    Optional Turbo ECU

  • Programable mapping Software
    Comes with starter map
    Holds dual maps
    Optional Turbo software

  • Laptop cable USB

  • Multi spark ignition control

  • Multi spark Distributor

  • Sensors O2 , Air Temp , TPS , MAP , Ambient

  • Complete wireing harness with conection box

Fuel and ignition controls . No need for MSD 6AL but if customer wants this ignition it will wire in conjunction with MSD 6 or 7.

This is redundant as our ignition does have a low rpm dwell increase to act similar to the MSD multi strike below 2500rpm .

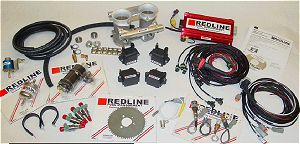

K2319 CC
Porche
VW

Fuel Injection

Fuel
  • 2  45mm IDF throttle bodies
    Optional 48mm 50mm

  • Fuel injectors 32lbs
    Optional 34lbs - 40lbs

  • Linkage kit

  • Fuel rail kit with AN fittings

  • Fuel pressure regulator

  • Air Cleaners

  • Includes manifolds

  • Fuel pump with hose and conectors

Ignition & ECU

  • ECU Turbo ready

  • Programable mapping Software
    Comes with starter map
    Holds dual maps

  • Laptop cable USB

  • Multi spark ignition control

  • Waste spark coil

  • Billet crank trigger w/pulley

  • Sensors O2 , Air Temp , TPS , MAP , Ambient

  • Complete wireing harness with conection box


Full Distributor-less crank trigger fuel and ignition based package with waste spark coil. Full tuner software with duel mapping with anti lag options full ignition timing controls with both dwell and timing
controls for both advance and retard controls for boosted applications.
Kit includes new billet crank pulley with trigger integrated along with billet crank trigger bracket using factory mounting locations center case. Need to specify sand seal or non sand seal case set up for crank pulley.


Porche

Fuel Injection

K911fi $3995.95

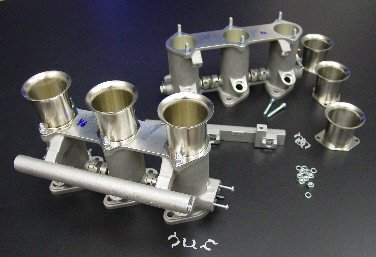

Fuel Injection Conversion 2 3bbl 46 IDA 3C Throttle bodies / Injectors / Sensors / Fuel Pump / ECU / Wire Loom

K911fiCC $4850.95
Fuel Injection Conversion 2 3bbl 46 IDA 3C Throttle bodies / Injectors / Sensors / Fuel Pump / ECU / Wire Loom / Crank trigger / Coil packs / make it distributerless

Prices will Vari with options

All harness set up for plug and play with GM style sensors.

All kits are available for boosted application specify boost option with order.


Extras

Computer Systems Only



Call For Pricing

99422.121 ECU 422 fuel only, 2 inj, 1 coil
99422.141 ECU 422 fuel only, 4 inj, 1 coil
99422.161 ECU 422 fuel only, 6 inj, 1 coil
99422.221 ECU R422D, fuel & dist ign, 2 inj, 1 coil
99422.241 ECU R422D, fuel & dist ign, 4 inj, 1 coil
99422.261 ECU R422D, fuel & dist ign, 6 inj, 1 coil
99422.341-4 ECU R422C, fuel & Crank Trigger ign, 4 inj, 1 x 4-Post Wasted Spark Coil
99422.344-4 ECU R422C, fuel & Crank Trigger ign, 4 inj, 4 x single coils

99422.361-6

ECU R422C, fuel & Crank Trigger ign, 6 inj, 1 x 6-Post Wasted Spark Coil
99422.366-6 ECU R422C, fuel & Crank Trigger ign, 6 inj, 6 x single coils





  Fuel Injectors


Fuel Delivery Kit
 99901.113


Kit is supplied complete with fuel pump, fittings, proper fuel line for both Low pressure high flow intake and proper hi pressure Injector supply side line. Redline also uses quality non tear hose clamps appropriate for fuel injection use. Kit also includes fuel filter, and regulator.
$ 270.00

Fuel Delivery Kit
99901.152


Kit is supplied complete with fuel pump, fittings, proper fuel line for both Low pressure high flow intake and proper hi pressure Injector supply side line. Redline also uses quality non tear hose clamps appropriate for fuel injection use. Kit also includes fuel filter, and regulator.
This pump is for all racing or applications where multiple carburetors are to be used with extended WOT high output operation is required.
$ 309.00

Crank Trigger Wheel & Sensor $ 199.00

Polished Intake VW
(Takes 2 to 4 weeks)
$ 250.99

Other stacks and filters

Redline Regulators and Pumps
