Carbs Unlimited

Can't find carb # try here
Number
Brand: Rochester Type:  R4-M4MC
Quadrajet Qjet
Number: 17110147
CU: 4-648

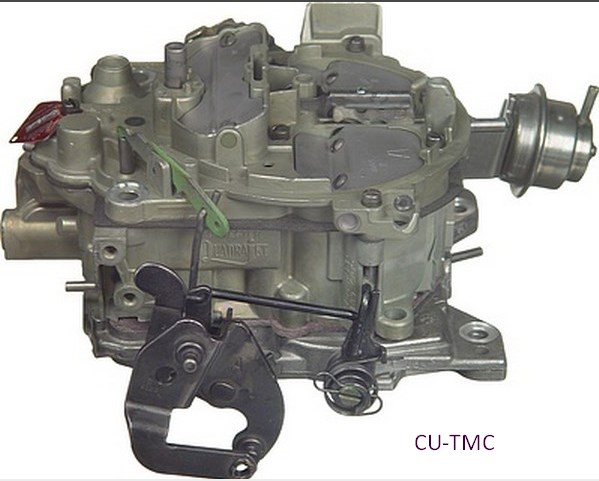

General Picture of a R4-M4MC
Sorry Picture NA

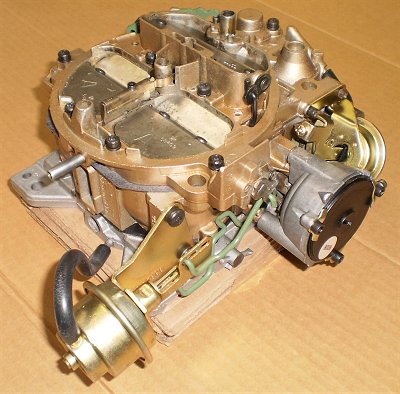

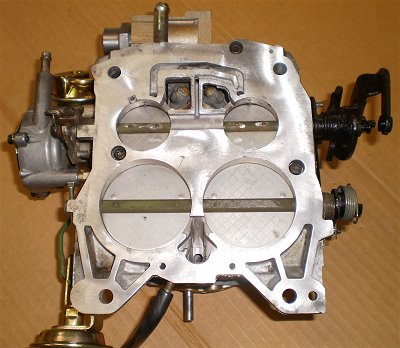

Actual Picture
Sorry Picture NA

Disc: 80-85 Chev &GMC Truck Notes: Notes
Cyl:225.75
Rebuild Kit:  KT-5501A /

Check here for Muscle car Info

Float:  FLT-100-17 / Acc Pump:
Choke Pulloff Front:  PO-5080LC / Acc Pump Cup:
Choke Pulloff Rear:  PO-5237 / Needle & Seat:  N/S-31-542
Choke Thermostat: EC-8008 / PowerValve:
    Jets:  Jets
Mixture Control Solinoid:    Mettering Rods:
Throttle Position Sensor:    Linkage Rods:   /

Fuel Fitting:
FuelFilter:
90-125

Mixture Screw:

Air Cleaner Gasket:  G702

Rebuilt Carburetors

Bowl Gasket:    / Carbs Unlimited Rebuild: 4-648
Middle Gasket:    / New Carb/Reman:
Base Gasket:  G1199 / Core:  $

Check the Rochester Parts Page for more parts
We have many parts that may not be listed Call 253-833-4106

Sorry Picture NA

Sorry Picture NA


This carburetor was made by Rochester , The Rochester Products Division of General Motors was located in Rochester New York and built carburetors for GM vehicles since 1949 . It is a R4-M4MC the M4MC is a Hot air side mounted choke Rochester Quadrajet 4 barrel carburetor, which means the choke is located on the passenger side connected to the carburetor and draws hot air from the intake .They started making them in 1975 and ran threw 1990. Most will have 1 inch 20 Fuel inlet . 1975 and up quadrajets use a different metering rod . This carburetor has a part number of  17110147 and used on 80-85 Chev &GMC Truck . Check here for specific Muscle car Info
Referenced by ; Rochester  17110147
